Product Description

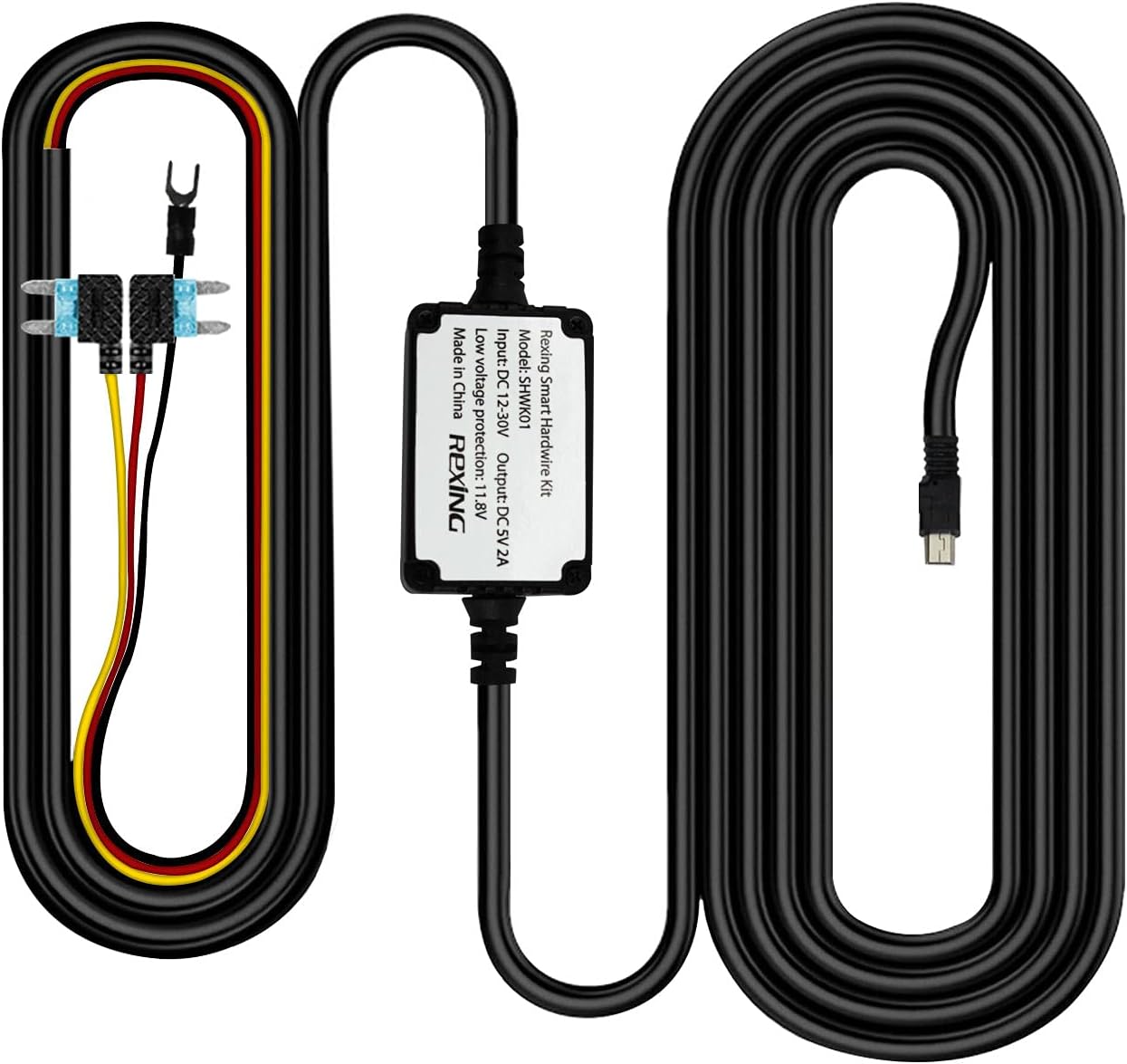

Why Smart Hardwire Kit?
Advanced Parking Mode Our Advanced Parking Mode will protect your car while the ignition is turned off. It’s most notable features are:
G Sensor: Gravity senor will capture impacts caused to the vehicle such as any hit-and-run driver in the act while you are away. Energy Saving in Parking Mode extends coverage duration exponentially by keeping the dash cam in a power-saving mode during inactivity. The dash cam enters a Sleep Mode and Wakes Up instantly after an impact has been detected to safely record and store the next 20 seconds.Time Lapse: This unique Parking Mode feature is perfect for dash cams with smaller SD cards. Time Lapse records footage at a lower frame rate while reducing video size, to cover a longer period of surveillance.
Technical Details Connector: Mini USB Connector Input Voltage: DC 12V-24V Output Voltage: 5V Working Temperature: -22°F to 167°F (-30°C to 75°C) Cable Length: 13ft Low Voltage Protection: 11.6V for 12V vehicle
Installation Instruction
Find the Correct Fuse Slot
Locate the car fuse box, please refer to your car’s manual. Open the fuse box, find the correct fuse slot for your hardwire kit. If you need to find an ignition switched fuse, put the key in the vehicle, find the fuse which is not lit up while the car is off, and test it by turning the car on to see if it lights up. If your kit requires constant power, turn off the car and remove the key to see which fuse slots stays lit on.
Connect the Red Wire
Our hardwire Kit come with a 15A Mini type fuse. Plug the red wire fuse connector into the switched fuse box in the correct orientation.
Connect the Yellow Wire
Plug the yellow wire fuse connector into the hot fuse box in the correct orientation.
Ground the Hardwiring Kit
Slip the black wire (which is in the shape of a C) under a metal bolt or screw in your vehicle (this is the ground wire). Check that it is not attached onto plastic parts. You will typically need a socket wrench to loosen the nut or bolt that you choose to ground with. To attach the grounding terminal, loosen the nut or bolt enough to slip it in and tighten it back up afterwards.
Main features
24/7 Parking Surveillance
Directly to the battery for constant 24hrs/7days power to protect against theft when your car is in the parking lot.Directly to the ignition wire for power only so it can turn on and off with the ignition.
Low Voltage Protection
Smart low voltage protection automatically shut off the power to your dash cam when the battery voltage drops to 11.6V, thus preventing it draining the battery.
Compatible 12 – 24V Vehicles
This smart hardwire kit accepts voltage from any type of vehicles runs on 12 – 24V, works perfect for car, truck, bus, suvs, or big rig for continuous power.
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.1 out of 5 stars 5,911
3.8 out of 5 stars 1,304
3.9 out of 5 stars 243
4.0 out of 5 stars 610
3.9 out of 5 stars 311
3.8 out of 5 stars 114
Price
— no data
$149.99$149.99 $194.99$194.99 $289.99$289.99 $159.99$159.99
— no data
Max Video Resolution
1080p 1080p +VGA 1080p + 1080p 2160p (Single) 1080p (Dual) 2160p (Single) 1080p (Dual) 1080p+720p+720p
Camera Type
Front Front + Rear Front + Rear Front + Inside Front + Inside Front + Rear + Cabin
Rear Camera Support
no data
✓
✓
no data
no data
✓
Wi-Fi
✓
✓
✓
✓
✓
✓
GPS Logger Support
Optional Optional Built-in Optional Built-in no data
Battery Type
Super Capacitor Super Capacitor Super Capacitor Super Capacitor Super Capacitor Super Capacitor
Made to use with All Rexing Supercapacitor Models – V1-4K, V1P, V3, V2 Pro, V5, S1 Series, V1P Pro Series, Max Series dash cams,etc
Input: DC12V-24V. Output: 5V, 1.5A, Mini-USB Port
Low voltage protection: 11.4V
Cable Length: 13ft
Note: The kit comes with a 15A Mini type fuse, you can connect your own fuse adapter if needed.
Please Note the Smart hardwire kit NOT Compatible with Rexing Battery Models: V1 Basic, M1, M1 Pro, M2, V2, V360
Customers say
Customers find the hardwire kit easy to install with clear instructions and appreciate its quality. The functionality receives mixed feedback – while some say it works well, others report issues with the G shock sensor. The fuse compatibility is a concern, as the kit only comes with one mini fuse connector and is not compatible with most vehicles. Value for money opinions are divided, with some finding it worth the price while others consider it a waste of money.
